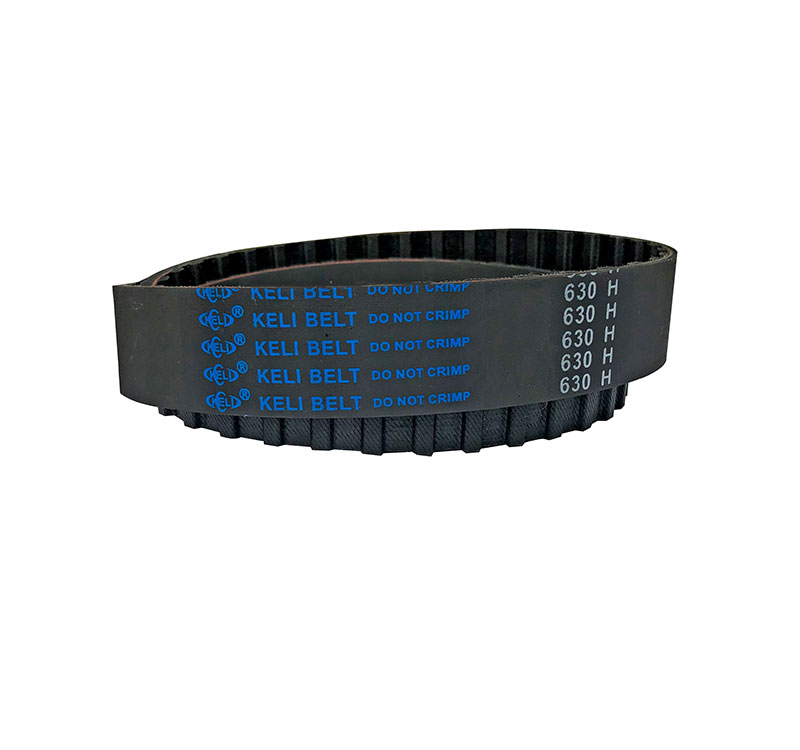

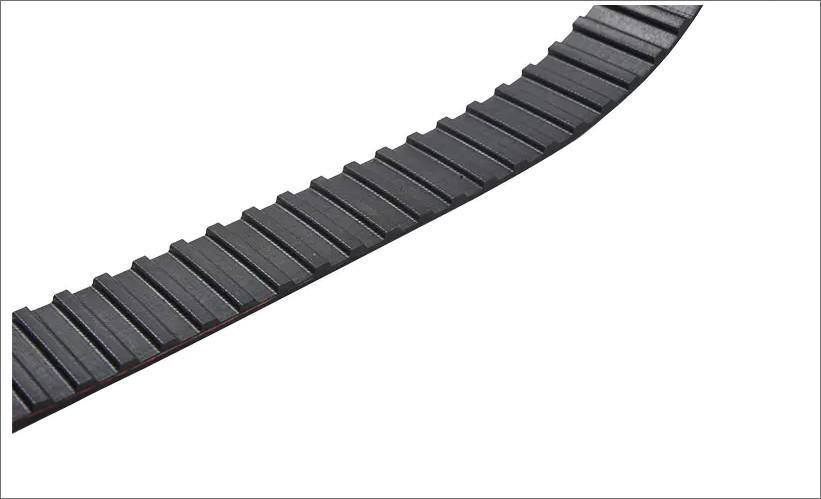

The rubber synchronous belt is made of three main materials: neoprene, glass fiber line and elastic nylon cloth. It is a special rubber transmission belt used for various mechanical transmissions. It uses the coincidence of belt teeth and belt gears for transmission, so it has the comprehensive characteristics of gear transmission, chain transmission and belt transmission.

The rubber synchronous belt drive has the following advantages:
Synchronous transmission ensuring no slip between transmission wheels
The transmission ratio can reach 10 and the transmission speed can reach 40M/S
Transmission power can range from several watts to kilowatts
The transmission structure is simple and light without lubrication
No need for large initial tension, small axle load
Low running noise
