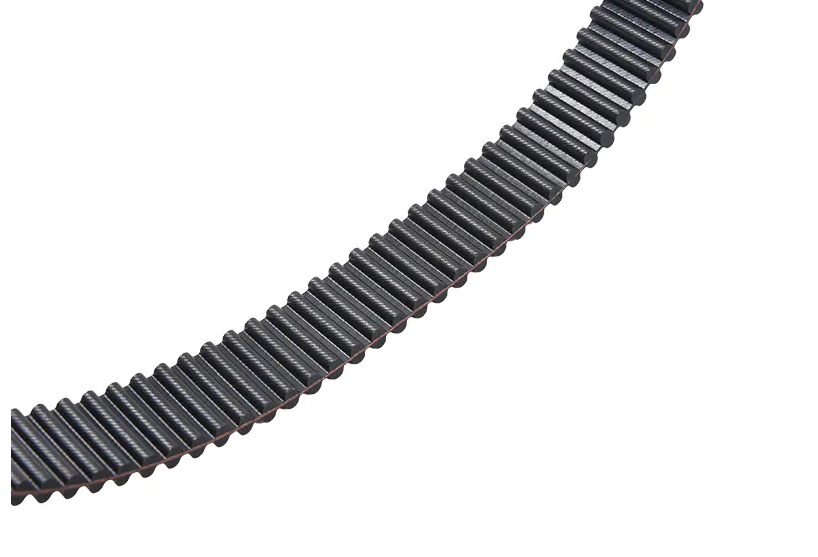

Double sided gear synchronous belt has the characteristics of light structure, non slip meshing transmission, low noise, etc. It is commonly used in multi shaft drive and double sided drive.

1. The pitch and tooth shape of the double side tooth synchronous belt are the same as those of the single side tooth synchronous belt.
2. Double sided toothed synchronous belt can be divided into two standard types according to the arrangement of belt teeth:

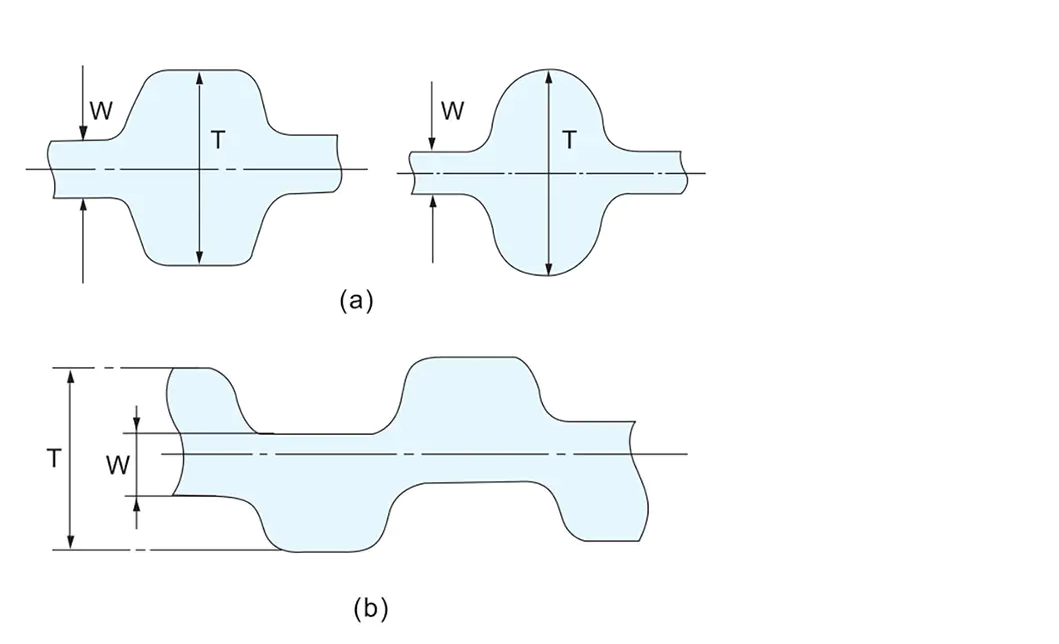

DA type double side tooth synchronous belt, the teeth on both sides of which are arranged symmetrically, as shown in Figure (a)
DB type double side toothed synchronous belt, the teeth on both sides of which are arranged in staggered positions, as shown in Figure (b)
Note: The company can process double side tooth synchronous belts with symmetrical teeth (DA) and staggered teeth (DB), and special specifications can be made according to the sample drawings required by users.
